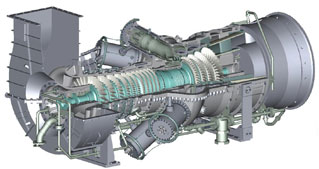

Gas Turbine Type M7A-03D
Electrical power | 7.810 kW |
Fuel input | 23.273 kW |
Efficiency | 33,6 % |
Exhaust gas mass flow | 27,3 kg/s |
Exhaust gas temperature | 523°C |
Generator voltage | 6,3 kV 10,5 kV |
Steam mass flow 8 bar(g) saturated | 16,4 t/h |
Fuel type | Natural Gas |
Emissions | DLE, Single digit < 9ppm NOx |

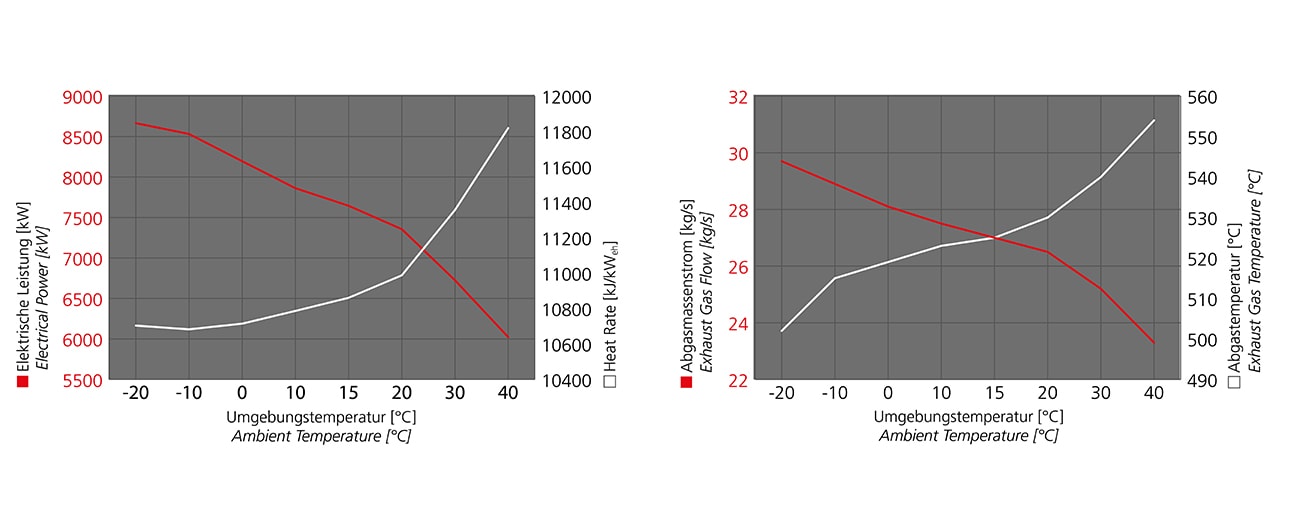

Performance under ISO-conditions w/o duct losses at Generator Terminal |
